Ceiling Filter C-600G
ltem No.: C-600Glt is mostly used in the spraying industry, for spray paint systems and spray paint workshops and ventilation systems and equipment and electronics, chemicals, medicine, food processing, mineral processing, smelting, environmental protection and various air conditioning systems.
Characteristic
- Made of 100% polyester fibres
- Gradient Density Structure
- Fully impregnated with adhesive treatment
- The outlet side of the filter media is reinforced by imported PE net and fire-retardant net.
- High flame resistance, high dust holding capacity
Get A Free Quote
We have a complete after-sales system
Free Sample
Fully Customized
Low MOQ: 100Pcs
Distribute Globally
Functions:
1. Capturing to particles, especially for the top part of spray booth, prefiltration through air filter program, diffluent equally.
2. Used for industry painting systems, pre-filtration of air-conditioning, ventilation systems.
3. Generally be used for second-class filtration after pre-filtration, first-class filtration before high-efficiency filtration.
Application:
Applied to Surface treatment painting booth, electronics, air-conditioning, aviation, aerospace, food industry, pharmaceutical industry, Biological Engineering and so on.

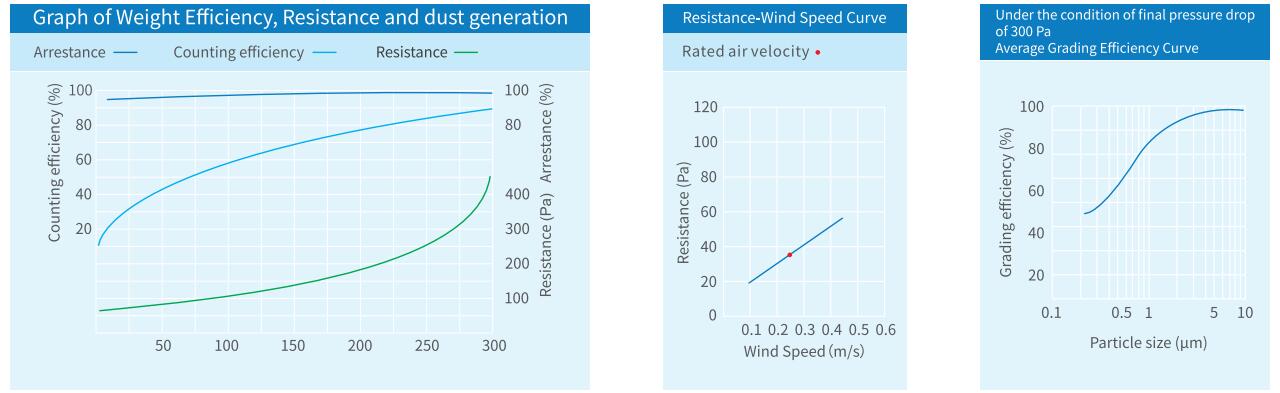

Technical Data
We Support Personalization! To make customized sizes and thicknesses is available.
| Material | 100% POLYESTER FIBRES |
| Model | C-600G |
| Normal Thickness (mm) | 20±3 |
| Weight (g/㎡) | 600 |
| Wind Velocity Test (m/s) | 0.25 |
| Initial Resistance (Pa) | 30 |
| Final Resistance (Pa) | 400 |
| Average Weight Efficiency | 96% |
| Rated Air Flow (m³/h) | 900 |
| Dust Holding Capacity (g/㎡) | 450 |
| Filtration Grade | M5 |
