Ceiling Filter FS-620G
ltem No.: FS-620Glt is mostly used in the spraying industry, for spray paint systems and spray paint workshops and ventilation systems and equipment and electronics, chemicals, medicine, food processing, mineral processing, smelting, environmental protection and various air conditioning systems.
Characteristic
- Adopting step-by-step encryption and multi-layer technology, widely used in spraying industry.
- Three-dimensional viscose, the air outlet surface is glass fiber mesh.
- Viscous treatment, because the adhesive completely penetrates the medium, the dust particles cannot pass through, so that the air flow that is completely filtered can spread evenly.
- Forming laminar flow state to achieve the best spraying effect. Comply with European and American fire classification standards DIN55438-F1, UL900-Class2.
Get A Free Quote
We have a complete after-sales system
Free Sample
Fully Customized
Low MOQ: 100Pcs
Distribute Globally
Application:
It is mostly used in the spraying industry, for spray paint systems and spray workshops and ventilation system and equipment and electronics, chemicals, medicine, food processing, mineral processing, smelting, environment protection and various air conditioning systems.

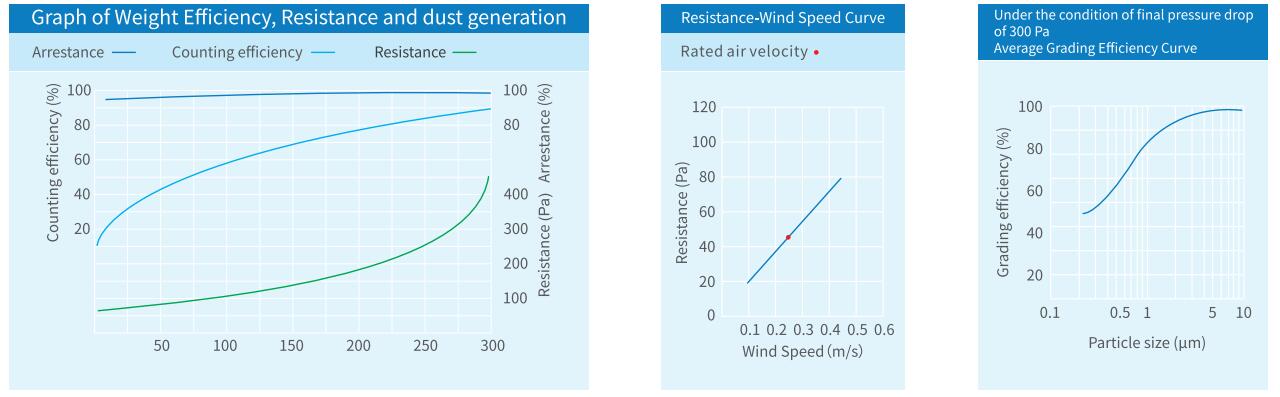

Technical Data
We Support Personalization! To make customized sizes and thicknesses is available.
| Material | 100% POLYESTER FIBRES |
| Model | FS-620G |
| Normal Thickness (mm) | 20±3 |
| Weight (g/㎡) | 620 |
| Wind Velocity Test (m/s) | 0.25 |
| Initial Resistance (Pa) | 45 |
| Final Resistance (Pa) | 350 |
| Average Weight Efficiency | 94% |
| Rated Air Flow (m³/h) | 900 |
| Dust Holding Capacity (g/㎡) | 450 |
| Temperature Resistance (℃) | 120 |
| Filtration Grade | M6 |
