Ceiling Filter S-560G
ltem No.: S-560Glt is mostly used in the spraying industry, for spray paint systems and spray paint workshops and ventilation systems and equipment and electronics, chemicals, medicine, food processing, mineral processing, smelting, environmental protection and various air conditioning systems.
Characteristic
- Made of 100% polyester fibres
- Gradient Density Structure
- Surface impregnated with adhesive treatment
- Clean air side with cloth net
- High flame resistance, high dust holding capacity
Get A Free Quote
We have a complete after-sales system
Free Sample
Fully Customized
Low MOQ: 100Pcs
Distribute Globally
Functions:
1. Capturing to particles, especially for the top part of spray booth, prefiltration through air filter program, diffluent equally.
2. Used for industry painting systems, pre-filtration of air-conditioning, ventilation system.
3. Generally be used for second-class filtration after pre-filtration, first-class filtration before high efficiency filtration.
Application:
Applied to Surface treatment painting booth, electronics, air-conditioning, aviation, aerospace, food industry, pharmaceutical industry, Biological Engineering and so on.

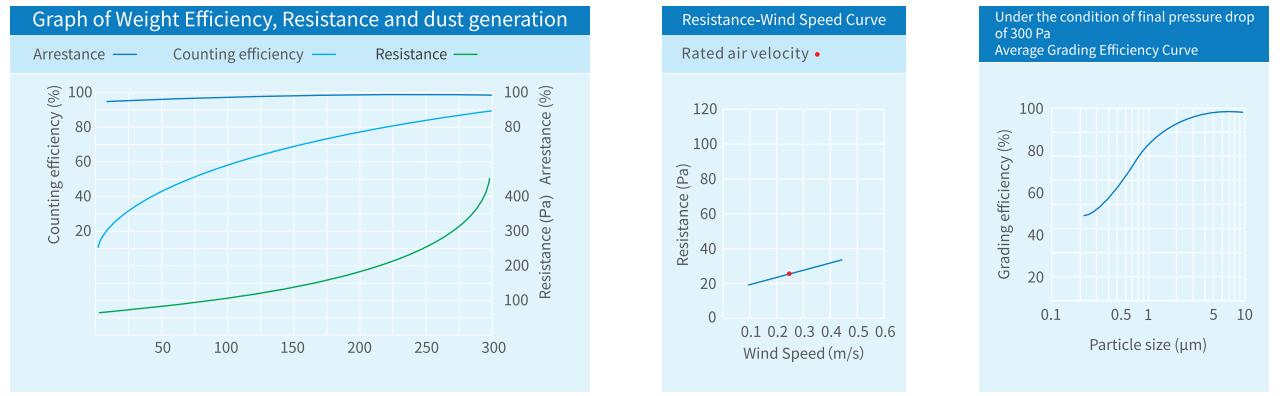

Technical Data
We Support Personalization! To make customized sizes and thicknesses is available.
| Material | 100% POLYESTER FIBRES |
| Model | S-560G |
| Normal Thickness (mm) | 20±3 |
| Weight (g/㎡) | 560 |
| Wind Velocity Test (m/s) | 0.25 |
| Initial Resistance (Pa) | 25 |
| Final Resistance (Pa) | 300 |
| Average Weight Efficiency | 94% |
| Rated Air Flow (m³/h) | 900 |
| Dust Holding Capacity (g/㎡) | 380 |
| Temperature Resistance (℃) | 120 |
| Filtration Grade | M5 |
