DPA Paint Mist Pocket Filter
Paint mist pocket filter is suitable for paint room, other air filtration links intercept high solid paint, powder paint, water-based paint, multi-component paint, colorant and adhesive paint slag.
Characteristic

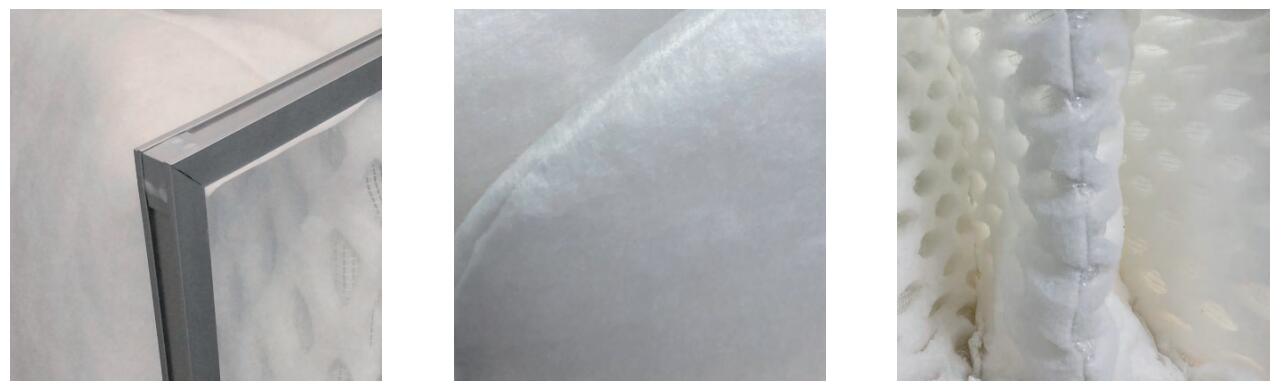

- The filter material is diamond-shaped paint mist filter cotton.
- DPA paint mist pocket filter has a larger filtration area, which can prolong the online service life and reduce the replacement times of paint fog filter.
- Fram can be aluminum alloy or stainless steel, good workmanship rust resistance, corrosion resistance, safe use.
- The capture efficiency of small paint fog above 10 microns can reach 99.8%
Get A Free Quote
We have a complete after-sales system
Free Sample
Fully Customized
Low MOQ: 100Pcs
Distribute Globally
Application:
Paint mist pocket filter is suitable for paint room, other air filtration links intercept high solid paint, powder paint, water-based paint, multi-component paint, colorant and adhesive paint slag.
We Support Personalization! To make customized sizes and thicknesses is available.
| Filtration Grade | Dimensions (mm) W*H* D | Number of Bags | Filtration Area (㎡) | Rated Air Flow (m³/h) | Initial Resistance (Pa) | Final Resistance (Pa) | Paint Capacity (kg) |
| G3 | 595*595*320 | 3 | 1.16 | 1700 | 30 | 200 | 3.48 |
| G3 | 595*595*320 | 4 | 1.53 | 2160 | 30 | 200 | 4.59 |
| G4 | 595*595*320 | 3 | 1.16 | 1700 | 45 | 250 | 3.48 |
| G4 | 595*595*320 | 4 | 1.53 | 2160 | 45 | 250 | 4.59 |
