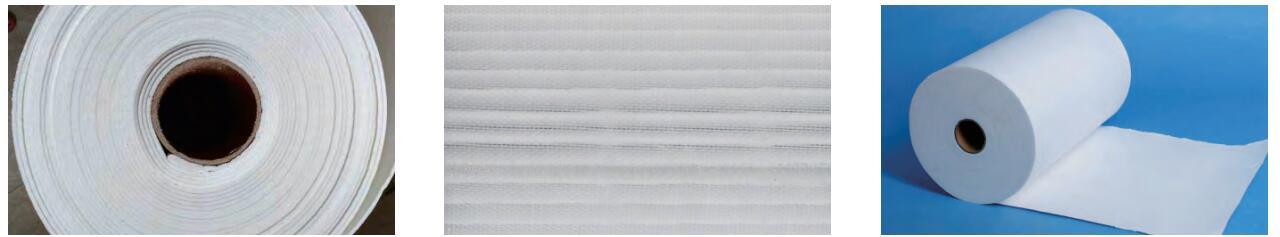

Fiberglass Paper

It is widely used for pleated/mini pleated HEPA filter and other high efficiency air filters.

Characteristic

This paper is made of glass fibers as main raw material by wet process.
High dust holding capacity, high efficiency
Depending on the filtering efficiency, the products are divided into three series (ASHEAR, HEPA and ULPA)

Get A Free Quote

We have a complete after-sales system

Free Sample

Fully Customized

Low MOQ: 100Pcs

Distribute Globally

DESCRIPTION

SPECIFICATIONS

HELP CENTER

DESCRIPTION
SPECIFICATIONS
HELP CENTER

Functions:

1. ASHRAE grades (F6-F9): ordinary air-conditioning system, gas turbine air intake, air compressor, etc.

2. HEPA grades (H10-H14): 10,000 to 100,000 grade cleaning rooms or working places, air exhaust equipment for nuclear, high-grade household vacuum cleaner, air purifier, masks, etc.

3. ULPA grades (U15-U17): chip factories, 100, 10 even 1 grade cleaning rooms, etc.

General Parameters

Filtration Grade	Longitudinal Strength (KN/m)	Tensile Strength (KN/m)	Stiffness (mg)	Ignition Loss (%)
M6	≥0.98	≥0.5	≥900	≤7
F7	≥0.98	≥0.5	≥900	≤7
F8	≥0.98	≥0.5	≥950	≤7
F9	≥0.98	≥0.5	≥950	≤7
H10	≥0.98	≥0.5	≥950	≤7
H11	≥0.98	≥0.5	≥950	≤7
H12	≥0.98	≥0.5	≥950	≤7
H13	≥0.98	≥0.5	≥950	≤7
H14	≥0.98	≥0.5	≥950	≤7
U15	≥0.98	≥0.5	≥950	≤7

We Support Personalization! To make customized sizes and thicknesses is available.

Filtration Grade	Thickness (mm) (10KPa)	Weight (g/㎡)	Efficiency (%)@0.3μm	Resistance (Pa)
M6	0.6±0.03	70±3	≥15	16
F7	0.6±0.03	70±3	≥50	≤38
F8	0.6±0.03	70±3	≥60	≤55
F9	0.55±0.03	70±3	≥85	≤80
H10	0.49±0.03	70±3	≥95	130-150
H11	0.49±0.03	70±3	≥99	150-170
H12	0.49±0.03	75±3	≥99.5	240-260
H13	0.49±0.03	75±3	≥99.97	310-330
H14	0.5±0.03	75±3	≥99.993	360-380
U15	0.49±0.03	75±3	≥99.998	390-420
