Home / Products / Others / Filter Plates /

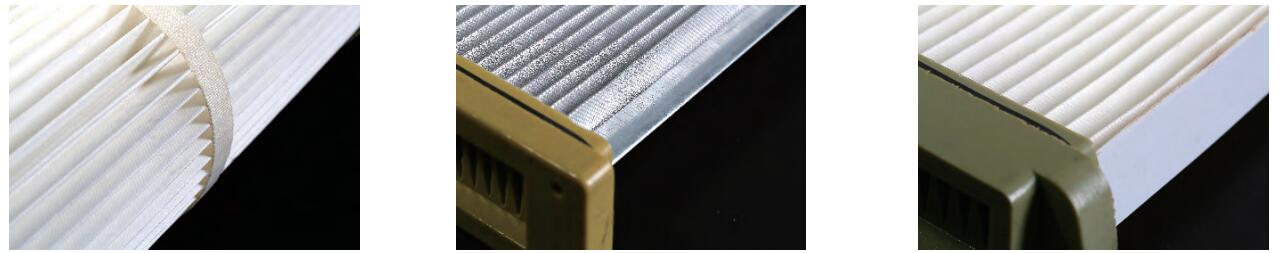

Filter Plates
Suitable for various industrial purposes, such as pollution prevention, public construction, air-conditioning industry, pharmaceutical industry, food industry, etc.
Characteristic
- Raw material polyester fiber.
- Pleated design for easy cleaning.
- Easy to install and disassemble.
- Strong burst resistance, washable.
- Increase the filtration area by more than 200%.
Get A Free Quote
We have a complete after-sales system
Free Sample
Fully Customized
Low MOQ: 100Pcs
Distribute Globally
Application:
Suitable for various industrial purposes, such as pollution prevention, public construction, air-conditioning industry, pharmaceutical industry, food industry, etc.
We Support Personalization! To make customized sizes and thicknesses is available.
| Model | Flange Length (mm) | Flange Width (mm) | Height (mm) | Filter Area (m²) |
| B16570 | 570 | 70 | 1075 | 4.48 |
| B16500 | 500 | 96 | 1000 | 4.00 |
| B16240 | 240 | 90 | 820 | 3.90 |
| B16460 | 460 | 85 | 930 | 2.74 |
| B16480 | 480 | 65 | 1500 | 4.99 |
| B16625 | 625 | 105 | 1195 | 5.40 |
