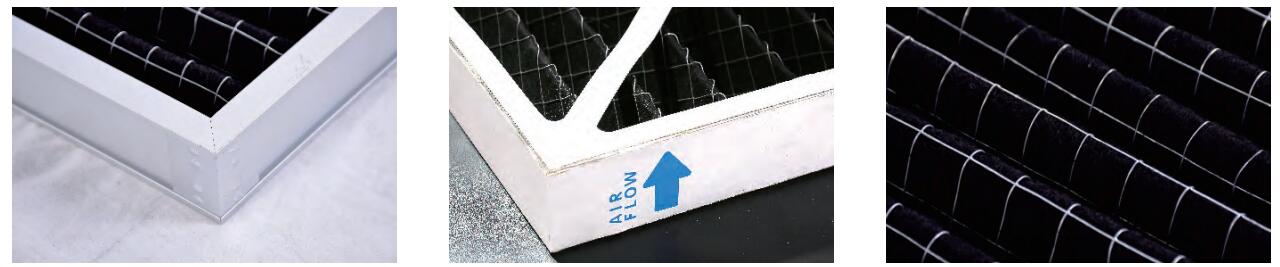

Foldaway Activated Cardon Filter
Foldaway Activated Cardon Filter

Foldaway Activated Cardon Filter

Pre-filter for the air-condition filtration system. It can lengthen the working life of the middle and high efficiency filter.

Characteristic

  • The filtration material is made from activated carbon fiber. It has the advantage of the large dust holding capacity, the low pressure loss in the initial period and lager air flow.
  • The filtration material compounds with the material net, and is designed into the foldaway, which will provide the current air with the largest filtration area, 5 times’ filtration area as the common plane mesh. Paper frame and metal frame are available, which is convenient for replace; Less purchasing expense
  • The humidity resistance 100%
  • Temperature resistance 80°c

Get A Free Quote

after-salesWe have a complete after-sales system

Free Sample

Fully Customized

Low MOQ: 100Pcs

Distribute Globally

Function:

Pre-filter for the air-condition filtration system. It can lengthen the working life of the middle and high efficiency filter.

We Support Personalization! To make customized sizes and thicknesses is available.

Filtration Grade Dimensions (mm) W*H* D Initial Resistance (Pa) Final Resistance (Pa) Rated Air Flow (m³/h)
G3 595*595*20 38 200 3000
G3 595*595*96 42 200 3400
G3 595*595*120 38 200 3400
G4 595*595*20 45 260 2800
G4 595*595*96 50 260 3400
G4 595*595*120 45 260 3400

If the shipment is delayed or product quality differs from what is specified in the online order, you can contact us to claim a refund.
