High Temperature High Efficiency Filter
ltem No.: H13/H14Applied to the high requirement air purification equipment and system for the ultra-clean oven and motorcar painting.
Characteristic
- The filtration material is the fiberglass paper
- Aluminum foil demarcation strip
- Galvanization frame or stainless steel frame
- Sealed by the imported temperature sealant
- Small resistance, high efficiency , fire resistant, adapt to 250-350℃
Get A Free Quote
We have a complete after-sales system
Free Sample
Fully Customized
Low MOQ: 100Pcs
Distribute Globally
Application:
Applied to the high requirement air purification equipment and system for the ultra-clean oven and motorcar painting.

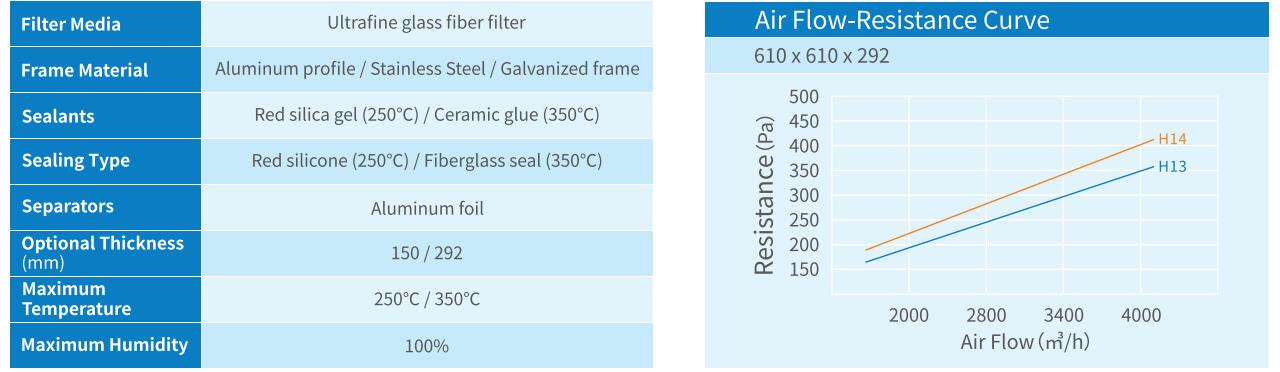

Technical Data
We Support Personalization! To make customized sizes and thicknesses is available.
| Filtration Grade | Dimensions (mm) W*H* D | Filter Area (㎡) | Rated Air Flow (m³/h) | Wind Velocity Test (m/s) | Initial Resistance (Pa) |
| 610*610*120 | 7.04 | 750 | 0.56 | 190 | |
| H13 | 610*610*292 | 21.25 | 2200 | 1.64 | |
| 610*1220*292 | 45.5 | 4450 | 1.66 | ||
| 610*610*120 | 7.04 | 750 | 0.56 | 220 | |
| H14 | 610*610*292 | 21.25 | 2200 | 1.64 | |
| 610*1220*292 | 45.5 | 4450 | 1.66 |
