Hot-melt Pocket Filter

Air-conditioning HVAC and ventilation system filtration. Especially suitable for coating industry paint booth‘s pre-filter.

Characteristic

  • Using seamless welding technology, keep structure stability and reduce the risk of leaky make sure the reliability of using.
  • The media are progressively structured, long service life.

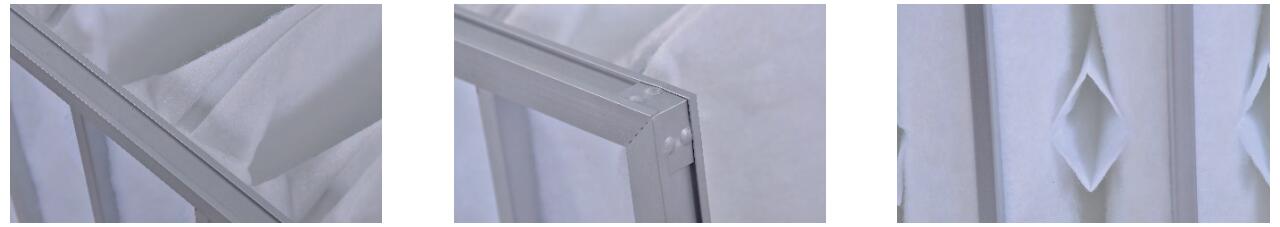

  • There are rhombic and small pockets inside, which not only distribute and share alike the air flow, but also maintain the figure of the pockets, reduce power consumption and make full use of the filter media.
  • There is no glass fiber breakage and the risk of falling. the same breeding conditions caused by microorganisms.

Get A Free Quote

after-salesWe have a complete after-sales system

Free Sample

Fully Customized

Low MOQ: 100Pcs

Distribute Globally

Specification:

1. Outside Frame: aluminum, galvanized frame or plastic frame

2. Material: Hot Melt welding media

3. Filtration class: G4-F9

Function:

Air-conditioning HVAC and ventilation system filtration. Especially suitable for coating industry paint booth‘s pre-filter.

We Support Personalization! To make customized sizes and thicknesses is available.

Dimensions (mm) W*H* D 595*595*550 / 6P
Filtration Grade G4 M5 M6 F7 F8 F9
Air Flow (m³/h) 3400 3400 3400 3400 3400 3400
Initial Resistance (Pa) 40 70 90 125 155 180
Final Resistance Recommended (Pa) 200 200 300 450 450 450
Average Weight Efficiency 85% 90% 96% 98% >98% >98%
Initial Efficiency 50% 60% 85% 93%
Dust Holding Capacity (g/㎡) 900 1850 1200 1400 650 500
Temperature (℃) 100 100 100 100 100 100
Max Ambient Temperature (℃) 80 80 80 80 80 80
