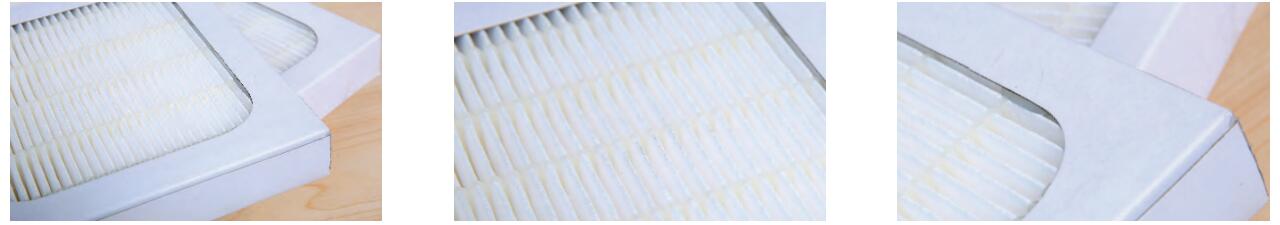

Paper Frame HEPA Filter
Applied to the terminal filtration for the air-condition filtration system. Used in hospital, electronic industry, food, precision instrument, electron semiconductors.
Characteristic
- The filtration material is fiberglass filter paper or the PP high efficiency filter paper
- The special hot-melt separator guarantee the best air flow
- The filtration material and frame is sealed by the special mucilage glue
- Temp. resistance up to 80℃, small resistance, high efficiency, long service life.
- Light weight, small volume, convenience for installation
- Outside Frame: cardboard/paper frame
Get A Free Quote
We have a complete after-sales system
Free Sample
Fully Customized
Low MOQ: 100Pcs
Distribute Globally
Application:
Applied to the terminal filtration for the air-condition filtration system.
Used in hospital, electronic industry, food, precision instrument, electron semiconductors.
We Support Personalization! To make customized sizes and thicknesses is available.
| Dimensions (mm) W*H* D | Rated Air Flow (m³/h) | Dust Holding Capacity (g/㎡) | Wind Velocity Test (m/s) | Initial Resistance (Pa) | Final Resistance (Pa) | Efficiency |
| 610*610*50 | 470 | ≈450 | 0.35 | ≤170 | 400 | 99.9995% |
| 915*610*50 | 700 | ≈700 | 0.35 | |||
| 610*610*69 | 600 | ≈650 | 0.45 | |||
| 915*610*90 | 900 | ≈950 | 0.45 | |||
| 610*610*90 | 800 | ≈800 | 0.60 | |||
| 915*610*90 | 1200 | ≈1200 | 0.60 | |||
| 1220*610*100 | 1600 | ≈1600 | 0.60 |
