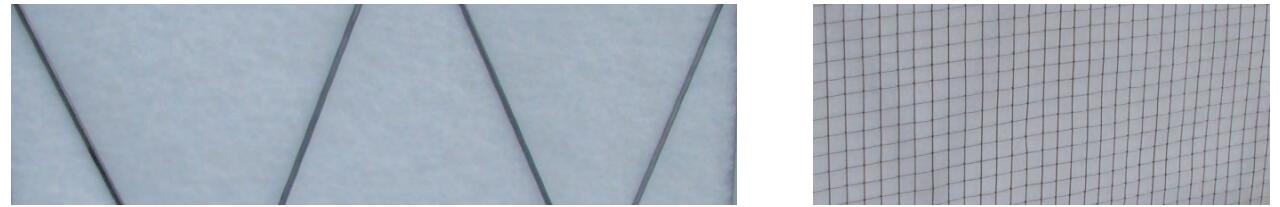

Pre-Filter Plank Mesh
Pre-filtration and second filtration for the ventilation system of the air conditioning, the filtration for entering or returning the air in the clean room.
Characteristic
- high air flow rate, low initial pressure drop, high dust holding capacity, long operating life
- The material is the coarse efficiency filter media with metal frame
- Easy assembly in air conditioning equipment
- Good ventilation property, small resistance
- Temperature resistance 80°C
Get A Free Quote
We have a complete after-sales system
Free Sample
Fully Customized
Low MOQ: 100Pcs
Distribute Globally
Functions:
Pre-filtration and second filtration for the ventilation system of the air conditioning, the filtration for entering or returning the air in the clean room.
We Support Personalization! To make customized sizes and thicknesses is available.
| Filtration Grade | Dimensions (mm) W*H* D | Initial Resistance (Pa) | Final Resistance (Pa) | Rated Air Flow (m³/h) |
| G3 | 595*595*20 | 35 | 120 | 1900 |
| G3 | 290*595*20 | 35 | 120 | 1000 |
| G3 | 595*595*46 | 35 | 120 | 3400 |
| G3 | 290*595*46 | 35 | 120 | 1700 |
| G4 | 595*595*25 | 45 | 150 | 1900 |
| G4 | 290*595*25 | 45 | 150 | 1000 |
| G4 | 595*595*46 | 45 | 150 | 3400 |
| G4 | 290*595*46 | 45 | 150 | 1700 |
