Primary/Medium Pocket Filter
Applied to the high requirement air purification equipment and system for the ultra-clean oven and motorcar painting.
Characteristic
- The filtration material is the fiberglass paper
- Aluminum foil demarcation strip
- Galvanization frame or stainless steel frame
- Sealed by the imported temperature sealant
- Small resistance, high efficiency, fire resistant, adapt to 250-350℃
Get A Free Quote
We have a complete after-sales system
Free Sample
Fully Customized
Low MOQ: 100Pcs
Distribute Globally
Application:
Applied to the high requirement air purification equipment and system for the ultra-clean oven and motorcar painting.
Each filter bag is fixed with metal strips to increase the strength of the filter screen and prevent the filter bag at high wind speed, which is broken due to wind friction.
There are six filter bags to prevent the filter bag from the wind pressure excessive expansion, mutual shelter and reduce the effective filter area and efficiency, filter bag edges are hot melt, with good air tightness and bonding strength, no leakage or rupture.
Galvanized frame: (thickness: 20mm、25mm)
Aluminum frame: (thinckness: 20mm、25mm、45mm)
We Support Personalization! To make customized sizes and thicknesses is available.

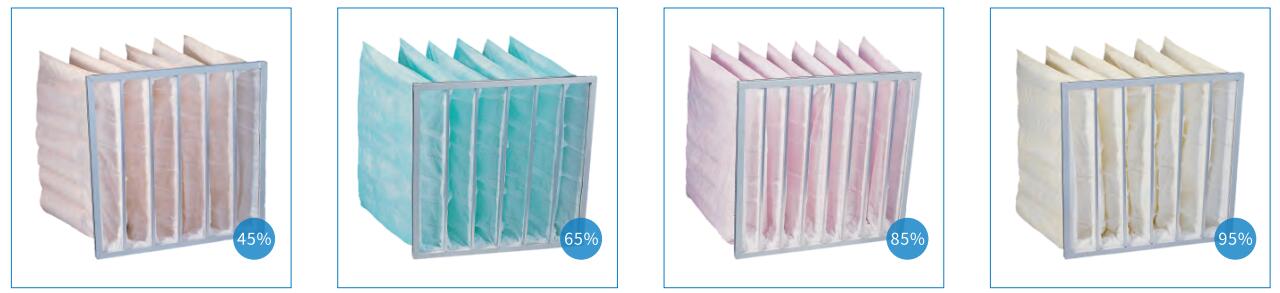

| Average Efficiency | Media Color | Dust Trap Rate | Using |
| 30-35% | White | 92% | Pre-filter for the middle efficiency filter. |
| 40-45% | Orange | 96% | Commercial buildings, theatres, stations, airports. |
| 60-65% | Green | 97% | Spray-painted car room, school, computer room. |
| 80-85% | Pink | 98% | Petrochemical, plastics, pharmaceutical, food, painting, electronics factory, hospital, laboratory, clean room. |
| 90-95% | Yellow | 99% | Precision electronics industry, defense factories, sterile rooms, aseptic workshop. |

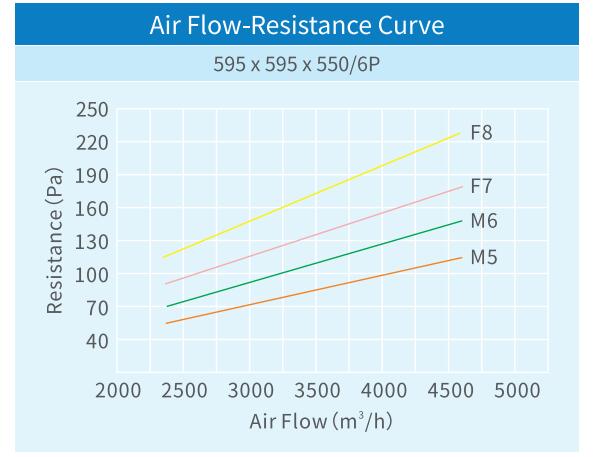

| Filtration Grade | Dimensions (mm) W*H* D | Number of Bags |
Filtration Area (㎡) | Rated Air Volume (m³/h) | Initial Resistance (Pa) | Final Resistance (Pa) |
| 35% (G4) | 287*595*550 | 3 | 2.12 | 1700 | 40 | 350 |
| 35% (G4) | 595*595*550 | 5 | 3.25 | 3400 | 45 | |
| 35% (G4) | 595*595*600 | 6 | 4.28 | 3400 | 40 | |
| 45% (M5) | 287*595*550 | 3 | 2.12 | 1700 | 45 | 400 |
| 45% (M5) | 595*595*550 | 5 | 3.25 | 3400 | 50 | |
| 45% (M5) | 595*595*600 | 6 | 4.28 | 3400 | 45 | |
| 65% (M6) | 287*595*550 | 3 | 2.12 | 1700 | 50 | 400 |
| 65% (M6) | 595*595*550 | 6 | 3.86 | 3400 | 65 | |
| 65% (M6) | 595*595*600 | 8 | 5.68 | 3400 | 65 | |
| 85% (F7) | 287*595*550 | 3 | 2.12 | 1700 | 90 | 400 |
| 85% (F7) | 595*595*550 | 6 | 3.86 | 3400 | 100 | |
| 85% (F7) | 595*595*600 | 8 | 5.68 | 3400 | 100 | |
| 95% (F8) | 287*595*550 | 3 | 2.12 | 1700 | 115 | 450 |
| 95% (F8) | 595*595*550 | 6 | 3.86 | 3400 | 120 | |
| 95% (F8) | 595*595*600 | 8 | 5.68 | 3400 | 120 |
