V-bank High Efficiency Filter
Large air volume ventilation systems, pharmaceuticals, food, hospitals, clean rooms and other filtration systems. Can be used for the middle of the high efficiency filtration system or the front end of the ultra-efficient filtration system pre-filter.
Characteristic
- The filtration material is the fiberglass or the polypropylene.
- High efficiency, large air flow
- Low operation cost, convenient for installation
- Large dust capacity, no partition design
- Temp. Resistance 80℃
- Resistance humidity: 80%
- Galvanization frame, aluminum frame or ABS plastic frame
Get A Free Quote
We have a complete after-sales system
Free Sample
Fully Customized
Low MOQ: 100Pcs
Distribute Globally
Application:
V-type large air volume efficient filter for the need for high cleanliness of the air conditioning system. V filter can be installed in the central air conditioner to protect the end of the clean room ultra-efficient filter, or installed in the pipeline for a special cleaning requirements of the process of air supply system.
Large air volume ventilation systems, pharmaceuticals, food, hospitals, clean rooms and other filtration systems. Can be used for the middle of the high efficiency filtration system or the front end of the ultra-efficient filtration system pre-filter.

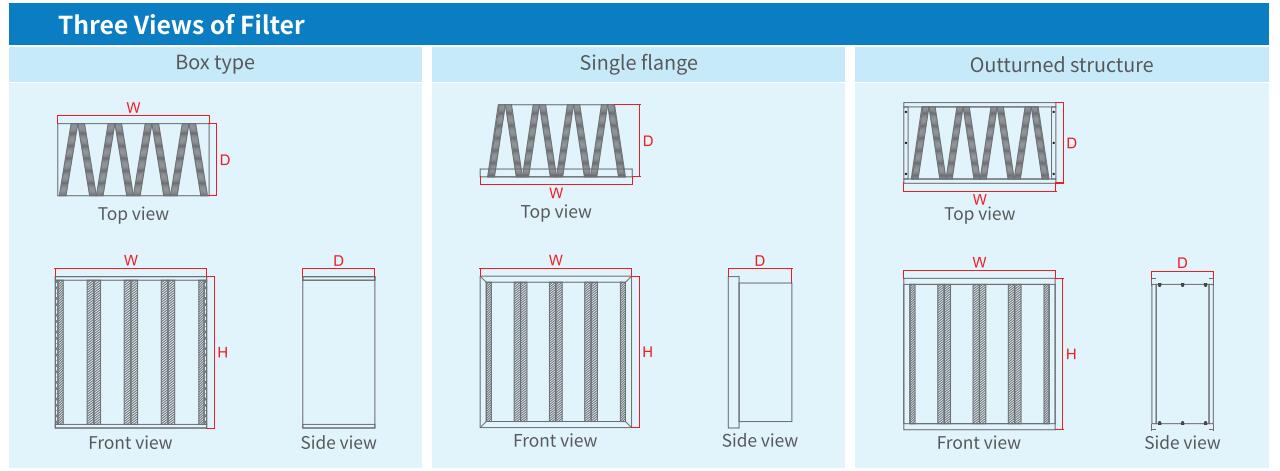

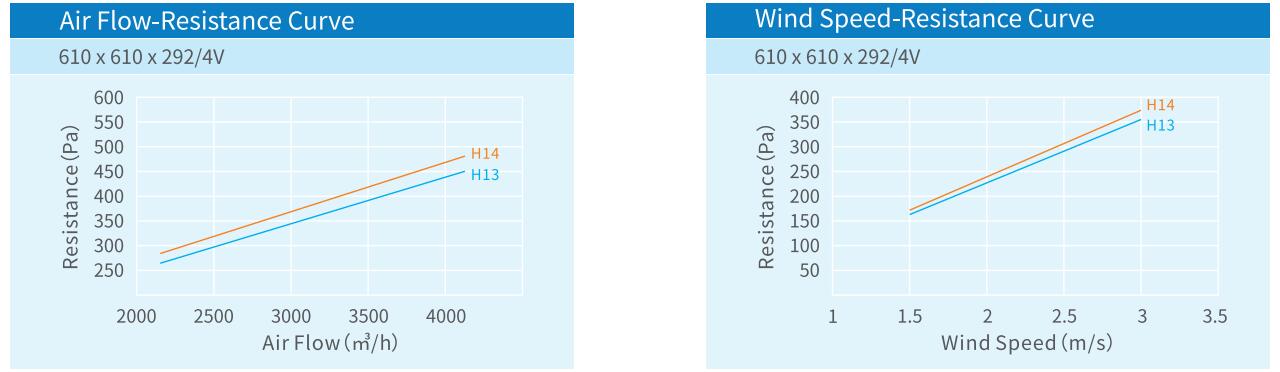

Technical Data
We Support Personalization! To make customized sizes and thicknesses is available.
| Filter Media | Ultrafine glass fiber filter |
| Frame Material | Aluminum / Galvanized / Stainless Steel |
| Sealants | Pu two-component polyurethane adhesive |
| Sealing Type | EVA / EPDM / PU |
| Separators | Hot melt adhesive |
| Optional Thickness (mm) | 220 / 250 / 292 / 305 |
| Maximum Temperature | 70℃ |
| Maximum Humidity | 100% |
| Filtration Grade | Dimensions (mm) W*H* D | Filter Area (㎡) | Rated Air Flow (m³/h) | Wind Velocity Test (m/s) | Initial Resistance (Pa) | Final Resistance (Pa) |
| F9 | 592*287*292/4V | 7.40 | 1600 | 2.5 | 125 | 250 |
| F9 | 592*592*292/4V | 14.78 | 3200 | |||
| F9 | 610*305*292/4V | 8.25 | 1520 | |||
| F9 | 610*305*292/5V | 10.32 | 1680 | |||
| F9 | 610*610*292/4V | 16.50 | 3250 | |||
| F9 | 610*610*292/5V | 20.62 | 3400 | |||
| H10 | 592*287*292/4V | 7.64 | 1600 | 2.5 | 150 | 450 |
| H10 | 592*592*292/4V | 18.13 | 3200 | |||
| H10 | 610*305*292/4V | 9.89 | 1520 | |||
| H10 | 610*305*292/5V | 12.28 | 1680 | |||
| H10 | 610*610*292/4V | 19.12 | 3250 | |||
| H10 | 610*610*292/5V | 24.26 | 3400 | |||
| H13 | 592*287*292/4V | 7.64 | 1600 | 2.5 | 300 | 500 |
| H13 | 592*592*292/4V | 18.13 | 3200 | |||
| H13 | 610*305*292/4V | 9.89 | 1520 | |||
| H13 | 610*305*292/5V | 12.28 | 1650 | |||
| H13 | 610*610*292/4V | 19.12 | 3250 | |||
| H13 | 610*610*292/5V | 24.26 | 3400 | |||
| H14 | 592*287*292/4V | 7.64 | 1600 | 2.5 | 320 | 500 |
| H14 | 592*592*292/4V | 18.13 | 3200 | |||
| H14 | 610*305*292/4V | 9.89 | 1520 | |||
| H14 | 610*305*292/5V | 12.28 | 1650 | |||
| H14 | 610*610*292/4V | 19.12 | 3200 | |||
| H14 | 610*610*292/5V | 24.26 | 3400 |
