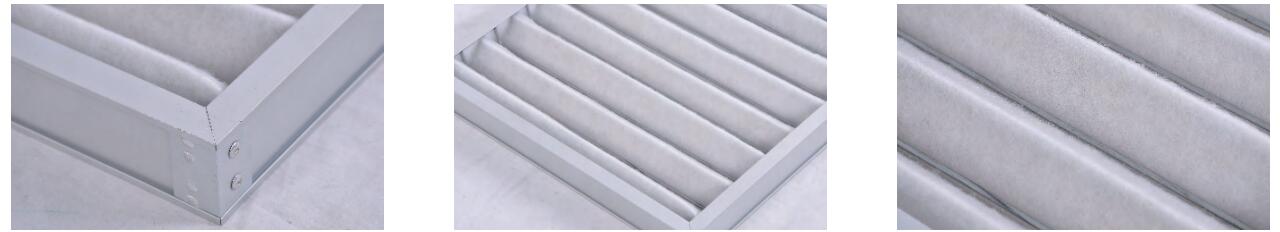

Washable Plank Filter
Pre-filtration and second filtration for the ventilation system of the air conditioning, the filtration for entering or returning the air in the clean room.
Characteristic
- The material is the high quality polyester synthetic fiber (coarse filter cotton)
- Metal frame, easy to replace
- The humidity resistance can reach up to 100%
- Temperature resistance: 80°C
Get A Free Quote
We have a complete after-sales system
Free Sample
Fully Customized
Low MOQ: 100Pcs
Distribute Globally
Functions:
Pre-filtration and second filtration for the ventilation system of the air conditioning, the filtration for entering or returning the air in the clean room.
We Support Personalization! To make customized sizes and thicknesses is available.
| Filtration Grade | Dimensions (mm) W*H* D | Rated Air Flow (m³/h) | Initial Resistance At Different Wind Speeds (Pa) | ||
| 70% | 100% | 120% | |||
| G3 | 595*595*46 | 3400 | 35 | 65 | 90 |
| 595*595*96 | 3400 | 30 | 55 | 75 | |
| G4 | 595*595*46 | 3400 | 50 | 85 | 110 |
| 595*595*96 | 3400 | 45 | 80 | 105 | |
| G5 | 595*595*46 | 3400 | 85 | 130 | 190 |
| 595*595*96 | 3400 | 75 | 105 | 145 | |
